This is an Discontinued product and is no longer being manufactured. It may have inventory able to be purchased.
- (Discontinued)

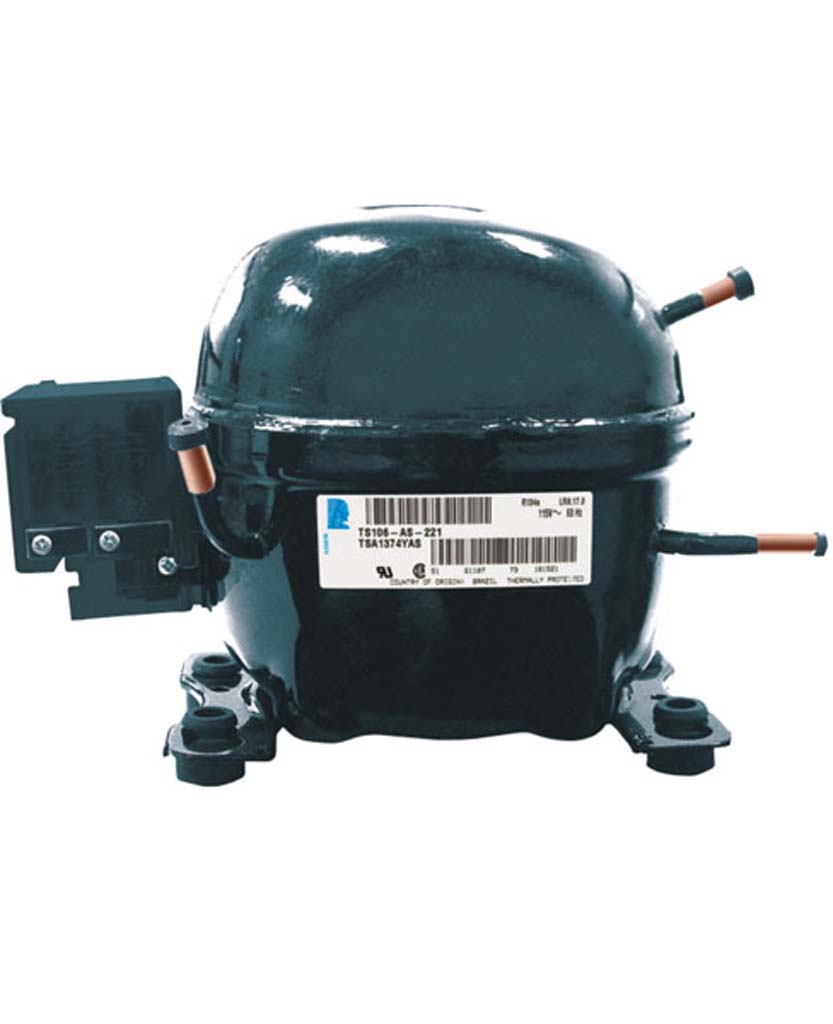

- Compressor Type: Reciprocating
- Application: LBP - Low Back Pressure
- Refrigerant: R-134a
- Voltage/Frequency: 115-127V ~ 60Hz
- Version: TS Series
General
Evaporating Temp. Range :-40°C to -10°C (-40°F to 14°F)
Motor Torque: Low Start Torque (LST)
Compressor Cooling: Static
Mechanical
Weight: 10 KG
Displacement (cc): 5.65
Oil Type: Polyolester
Viscosity (cSt): 10
Oil Charge (cc): 180
Electrical
Locked Rotor Amps (LRA): 23
Rated Load Amps (RLA 60Hz): 1.15
Voltage Range (60Hz): 100-140
Rated Load Amps (RLA 50Hz): 0
Max. Continuous Current (MCC in Amps): 0
Motor Resistance (Ohm) - Main: 4.16
Motor Resistance (Ohm) - Start: 3.89
Motor Type: PTCS_CR
ASHRAE | |
|---|---|
| Test Voltage | 127V ~ 60HZ |
| (R) Refrigeration Capacity (BTU/h) | 700 |
| (R) Refrigeration Capacity (Kcal/h) | 176 |
| (R) Refrigeration Capacity (W) | 205 |
| Input Power (W)W | 127.5 |
| (E) Efficiency (BTU/Wh) | 5.49 |
| (E) Efficiency (Kcal/Wh) | 1.38 |
| (E) Efficiency (W/W) | 1.61 |
| EVAP TEMP | -23°C (-10°F) |
| COND TEMP | 54°C (130°F) |
| AMBIENT TEMP | 32°C (90°F) |
| RETURN GAS | 32°C (90°F) |
| LIQUID TEMP | 32°C (90°F) |
