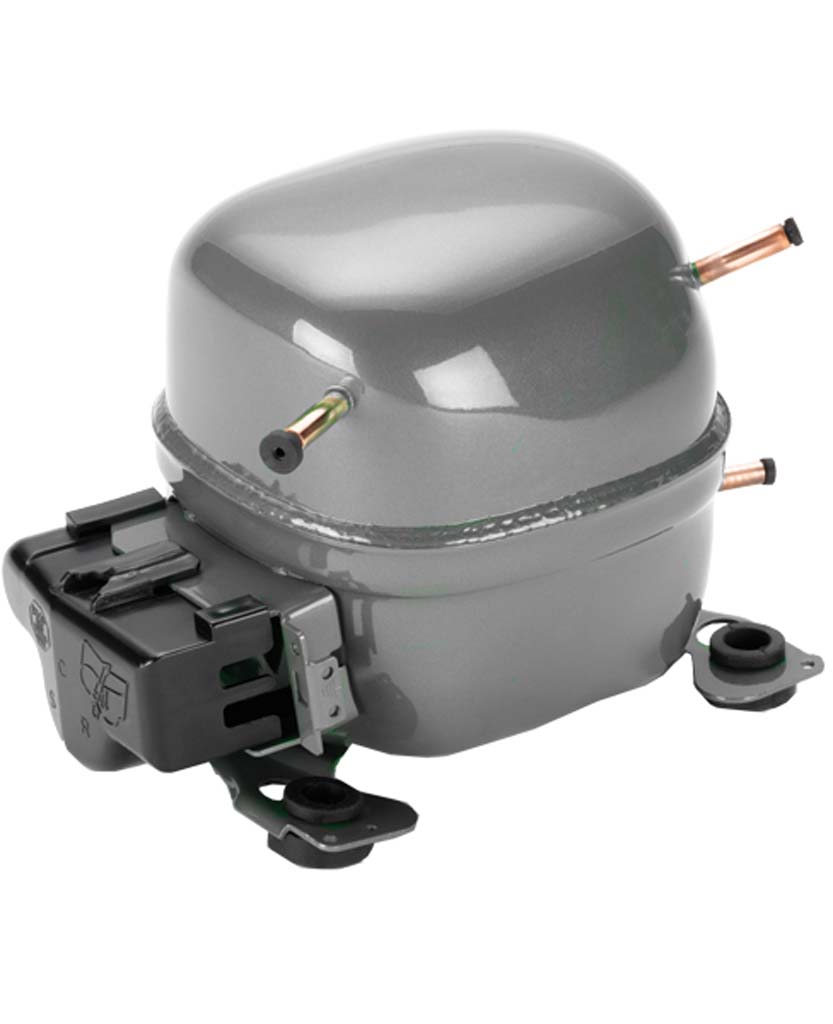

- Compressor Type: Reciprocating
- Application: HBP - High Back Pressure
- Refrigerant: R-134a
- Voltage/Frequency: 220V ~ 50Hz / 220V ~ 60Hz
- Version: TH Series
General
Evaporating Temp. Range :-6.7°C to 12.8°C (20°F to 55°F)
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan
Mechanical
Weight: 9 KG
Displacement (cc): 8.21
Oil Type: Polyolester
Viscosity (cSt): 32
Oil Charge (cc): 270
Electrical
Locked Rotor Amps (LRA): 12
Rated Load Amps (RLA 60Hz): 1.95
Voltage Range (50Hz): 180-242
Voltage Range (60Hz): 198-242
Rated Load Amps (RLA 50Hz): 1.8
Max. Continuous Current (MCC in Amps): 3.6
Motor Resistance (Ohm) - Main: 7.4
Motor Resistance (Ohm) - Start: 12.7
Motor Type: CSR
Agency Approval
UL_RECOGNIZED, CE_LISTED, CCC_LISTED
ASHRAE (R-134a) | |
|---|---|
| Test Voltage | 220V ~ 50HZ |
| (R) Refrigeration Capacity (BTU/h) | 2850 |
| (R) Refrigeration Capacity (Kcal/h) | 718 |
| (R) Refrigeration Capacity (W) | 835 |
| Input Power (W)W | 347 |
| (E) Efficiency (BTU/Wh) | 8.21 |
| (E) Efficiency (Kcal/Wh) | 2.07 |
| (E) Efficiency (W/W) | 2.41 |
| EVAP TEMP | 7.2°C (45°F) |
| COND TEMP | 54°C (130°F) |
| AMBIENT TEMP | 35°C (95°F) |
| RETURN GAS | 35°C (95°F) |
| LIQUID TEMP | 46°C (115°F) |
ASHRAE (R-134a) | |
|---|---|
| Test Voltage | 220V ~ 60HZ |
| (R) Refrigeration Capacity (BTU/h) | 3300 |
| (R) Refrigeration Capacity (Kcal/h) | 831 |
| (R) Refrigeration Capacity (W) | 967 |
| Input Power (W)W | 400 |
| (E) Efficiency (BTU/Wh) | 8.3 |
| (E) Efficiency (Kcal/Wh) | 2.1 |
| (E) Efficiency (W/W) | 2.4 |
| EVAP TEMP | 7.2°C (45°F) |
| COND TEMP | 54°C (130°F) |
| AMBIENT TEMP | 35°C (95°F) |
| RETURN GAS | 35°C (95°F) |
| LIQUID TEMP | 46°C (115°F) |
All Items available to OEM Customers
